Deo Solar end spacers and earthing plates complete a rail-less bracket installation. End spacers match framed module thicknesses of 30, 35 or 40 mm. Earthing plates bond panel frames before the modules are seated. Anti-tamper caps are pressed on once the top brackets are secured. These essentials are used with the Deo Solar roof bracket range.
Specifications
What this product is
Or call 012 110 4935
| End spacer | Selected for 30, 35 or 40 mm framed modules |
| Where the spacer sits | On the top of the bracket, per the IBR and Klip-On manuals |
| Earth plate | Fitted on the top bracket before the modules, to bond panel frames |
| Earth plate material | 304 stainless steel, as listed on the products catalogue |
| Anti-tamper cap | HDPE cap in the IBR manual. Press it on after the top bracket is secure. |
| Used with | IBR and Klip-On manuals include these steps. Confirm quantities for corrugated and structural orders on the quote. |
What’s included

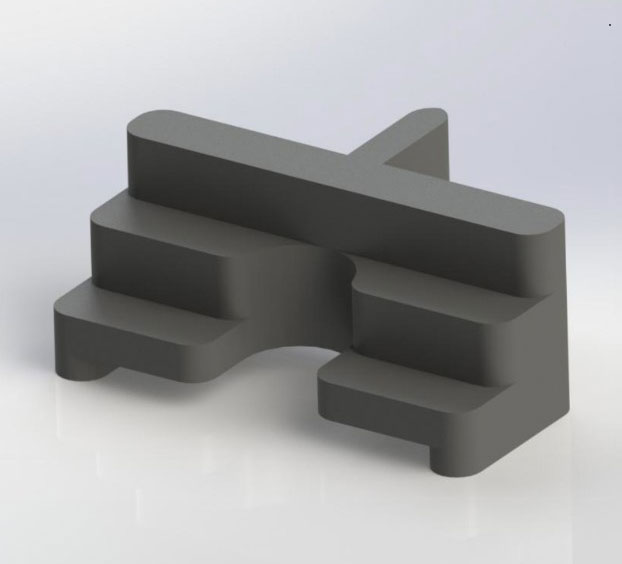

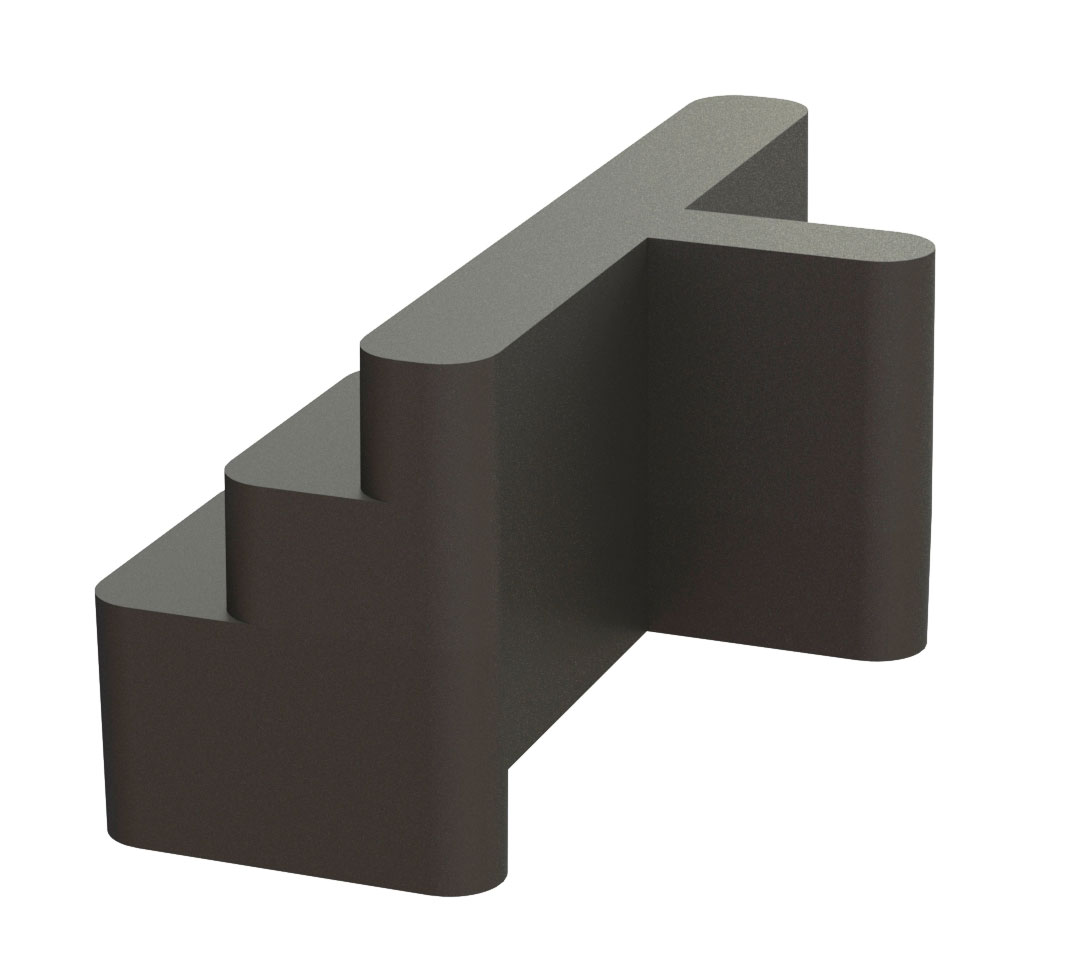

End spacer
One spacer position per the frame thickness. The manuals label 30 mm, 35 mm and 40 mm.

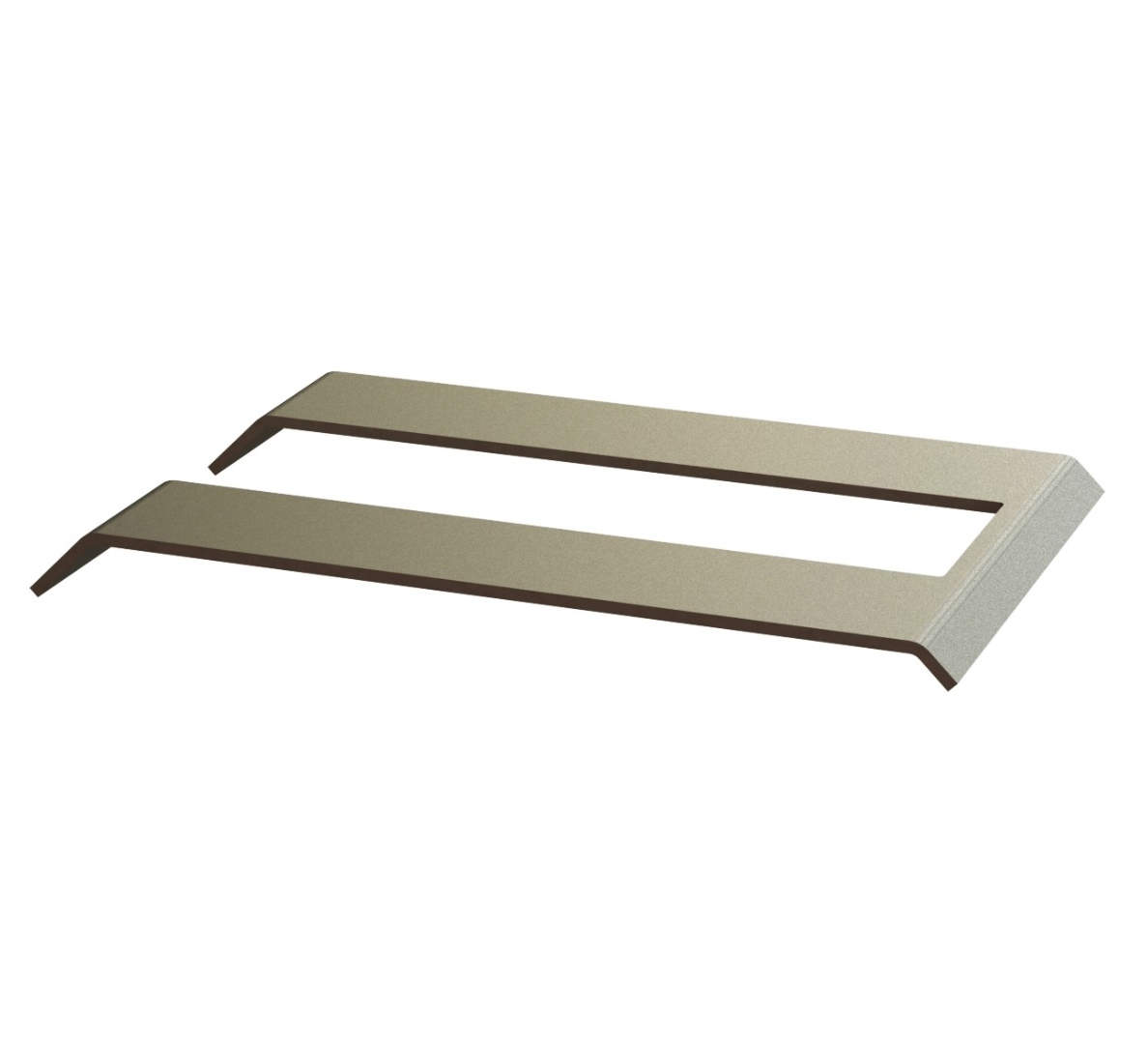

Earth plate
The manuals call for the earth clip on the top bracket before the solar panels go on, so neighbouring frames can be bonded.
Anti-tamper cap
A separate essential, linked from this page. It is not a mounting bracket. The manual says to press it until it is seated.
Compatibility
These parts finish a Deo Solar bracket install. They do not choose the roof profile. Order the IBR, corrugated, Klip-On or structural bracket for the roof, and these essentials with it.
How installation works
This is the outline. Torque, sheet checks and safety rules are in the installation manual, and the manual governs the install.
- Match the end spacer to the module frame: 30, 35 or 40 mm.

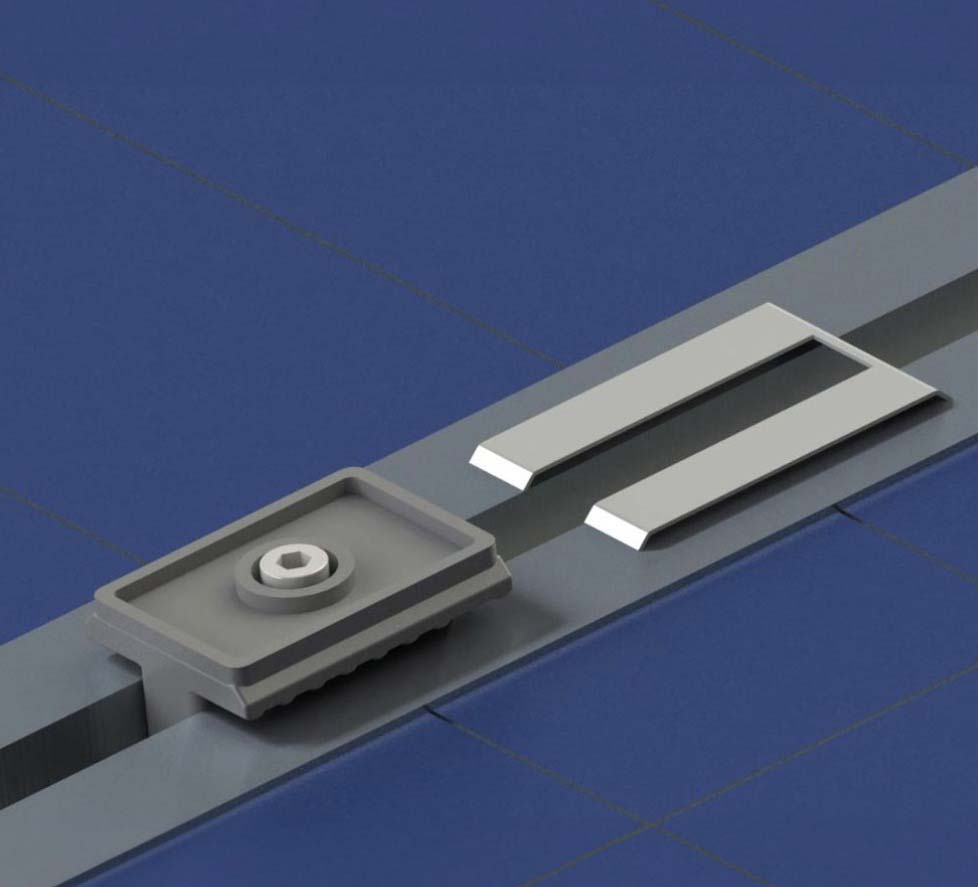

- Assemble the earth plate on the top bracket before placing modules.
- Seat the framed module and tighten to the bracket manual.

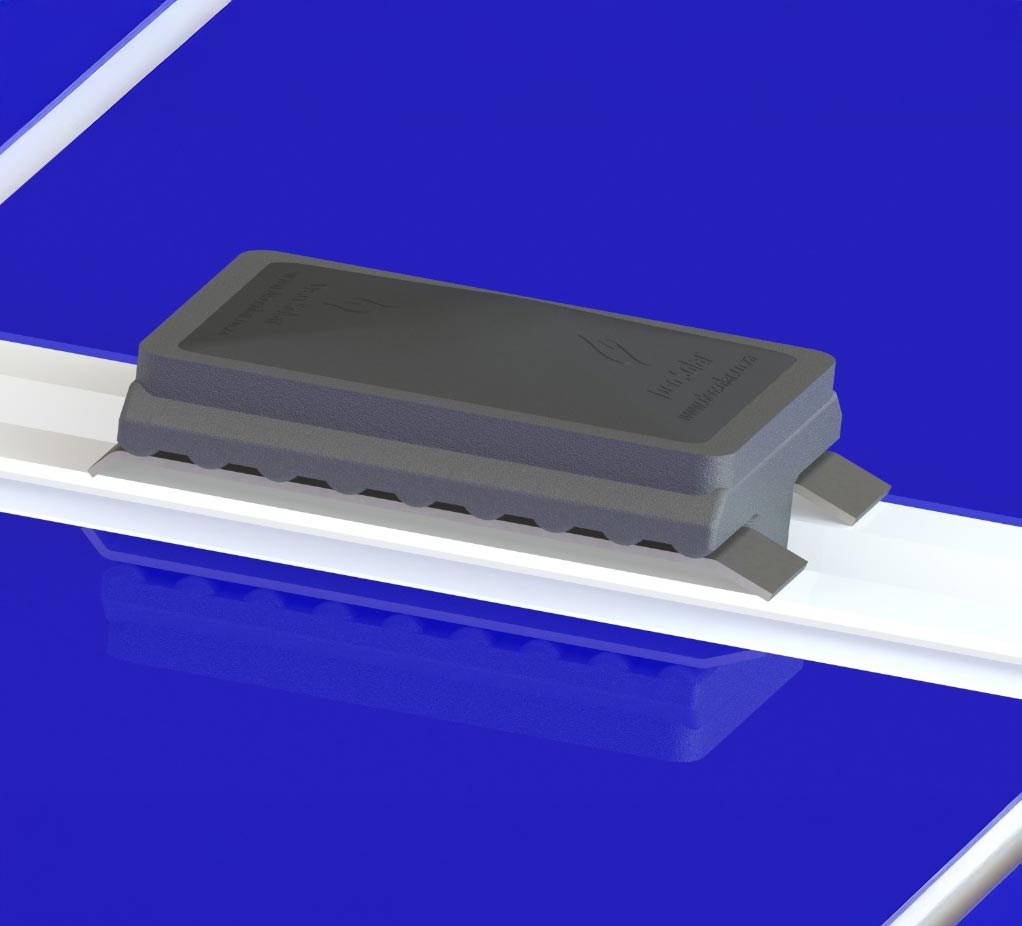

- Press the anti-tamper cap on after the top bracket is secure. Align it on all sides.
The same spacer, earth-plate and cap sequence is in the Klip-On installation manual. Corrugated fixing steps are in the corrugated installation manual.
Who orders it
Anyone ordering Deo Solar roof brackets. Installers usually add spacers, earth plates and caps to the same quote rather than treating them as optional extras.
