Home · Products · IBR Rail-Less Solar Brackets
Deo Solar’s IBR rail-less brackets are SA-designed mounting components for trapezoidal IBR metal roofs. Pre-assembled composite brackets self-align to the IBR profile, use a self-sealing fixing approach, and mount framed PV modules without a continuous aluminium rail. Founded in 2020, Deo Solar supplies brackets nationally and installs from its Pretoria head office.
Specifications
What this product is
Or call 012 110 4935
| Roof profile | Trapezoidal IBR metal sheet |
| System | Rail-less — no continuous aluminium rail |
| Material | UV-stabilised glass-reinforced composite, corrosion-resistant and non-conductive |
| Assembly | Pre-assembled; self-aligns to the IBR peak |
| Fixing | Stitching screw and sealing washer on each side. |
| Clearance | Approximately 100 mm from the roof, as stated for this bracket |
| Orientation | Landscape only, as documented in the IBR manual |
| Modules | Framed modules only. Not compatible with frameless modules. |
| Frame thickness | End spacer for 30, 35 or 40 mm |
| Roof pitch | 5°–45°, per the installation manual |
| Sheet | Aluminium ≥ 0.5 mm or steel ≥ 0.4 mm, per the manual |
| Warranty | 10-year product warranty when installed to the manual |
What’s included

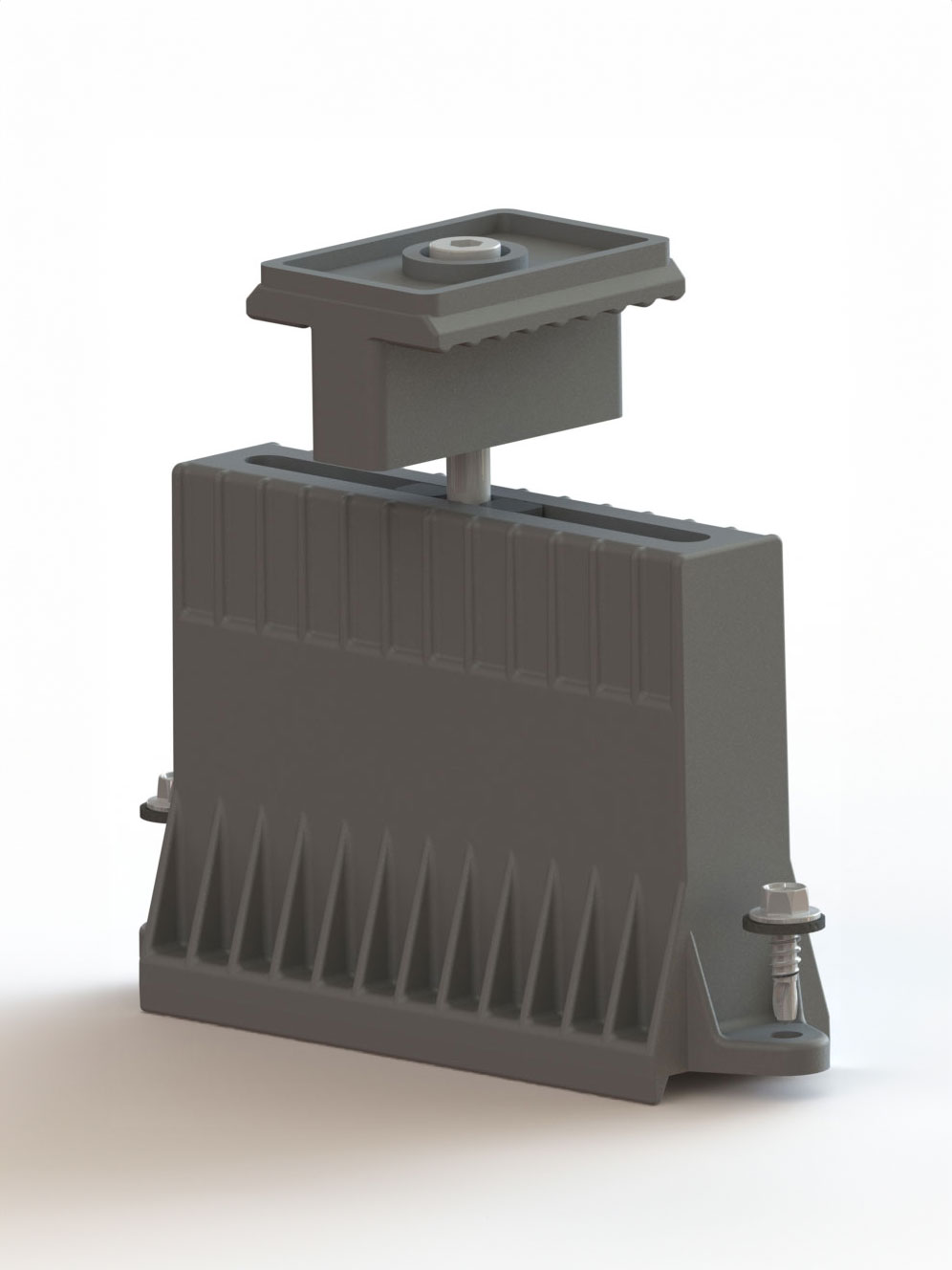

Base and top bracket
Industrial composite brackets supplied pre-assembled so the set places on the IBR peak and self-aligns.

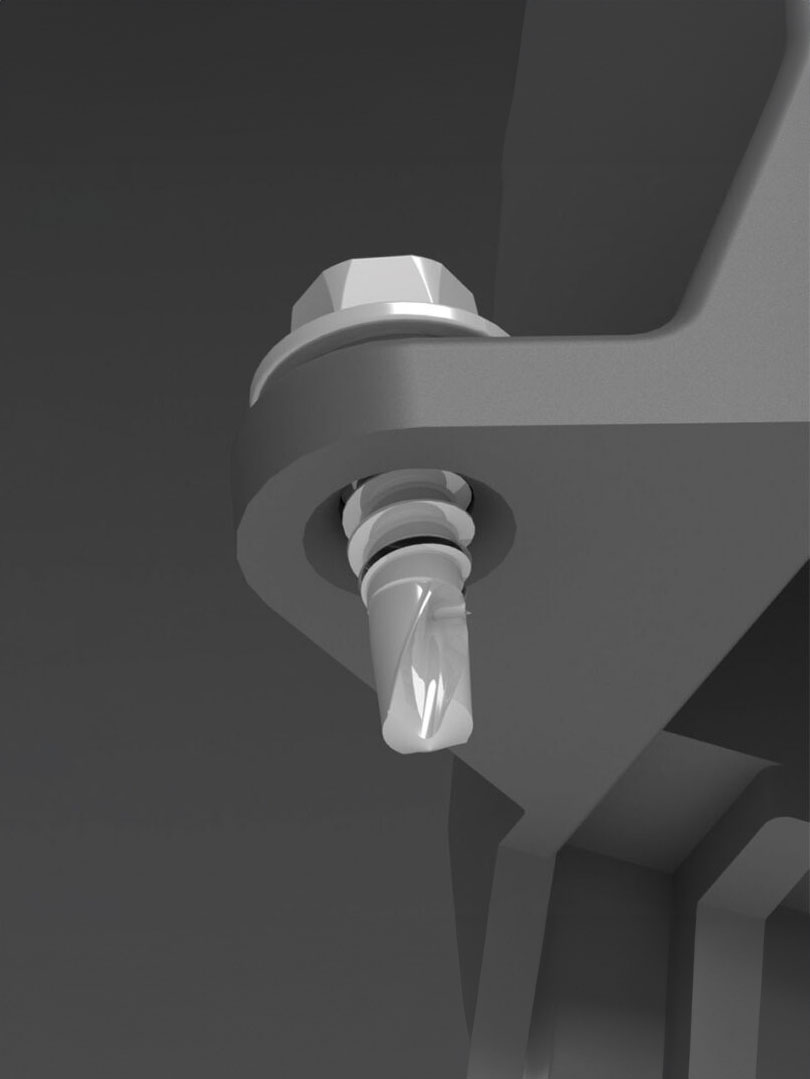

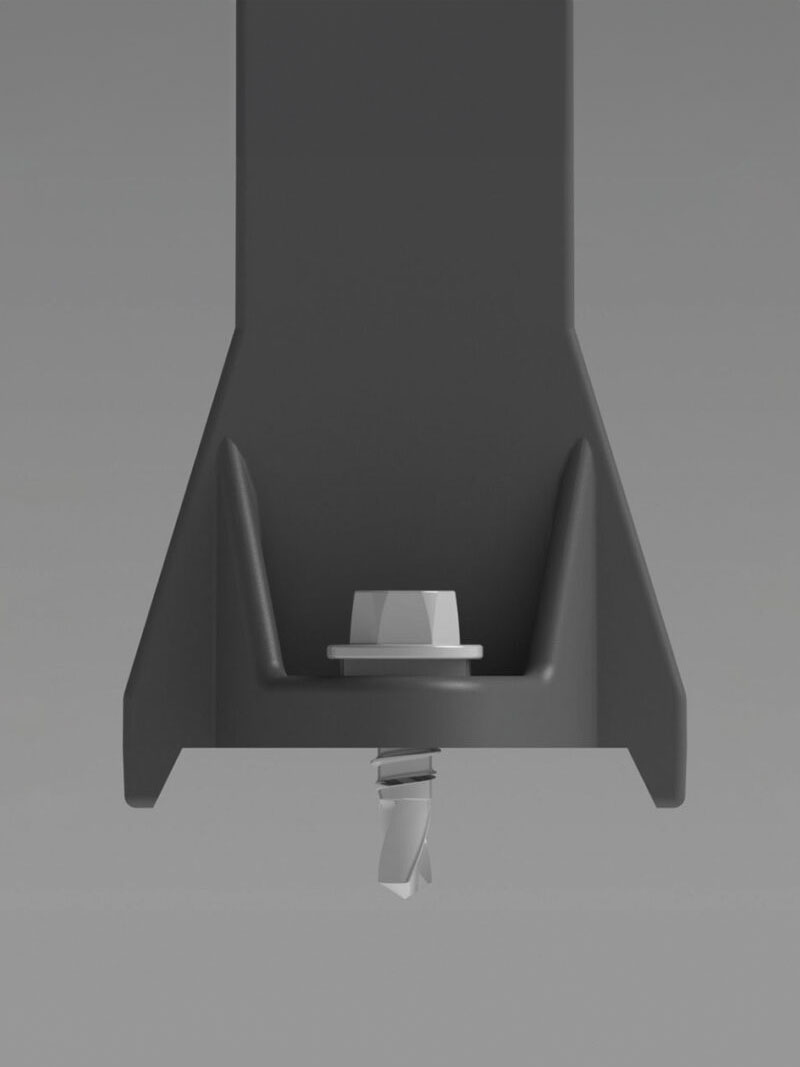

Stitching screws and sealing washers
The manual secures the bracket with a stitching screw and sealing washer on each side. Check sheet integrity before fixing.
End spacer, earth plate, anti-tamper cap
The manual’s install sequence includes these essentials. They are selected with the bracket order.
Compatibility
Use this bracket on trapezoidal IBR sheet. It is for framed modules in landscape orientation. It is not the corrugated bracket and it is not the Klip-On clamp for Klip-Lok or Saflok. Confirm sheet condition, frame thickness (30, 35 or 40 mm) and layout before install.
How installation works
This is the outline. Torque, sheet checks and safety rules are in the installation manual, and the manual governs the install.
- Mark bracket positions from the array layout before anyone fixes a screw.

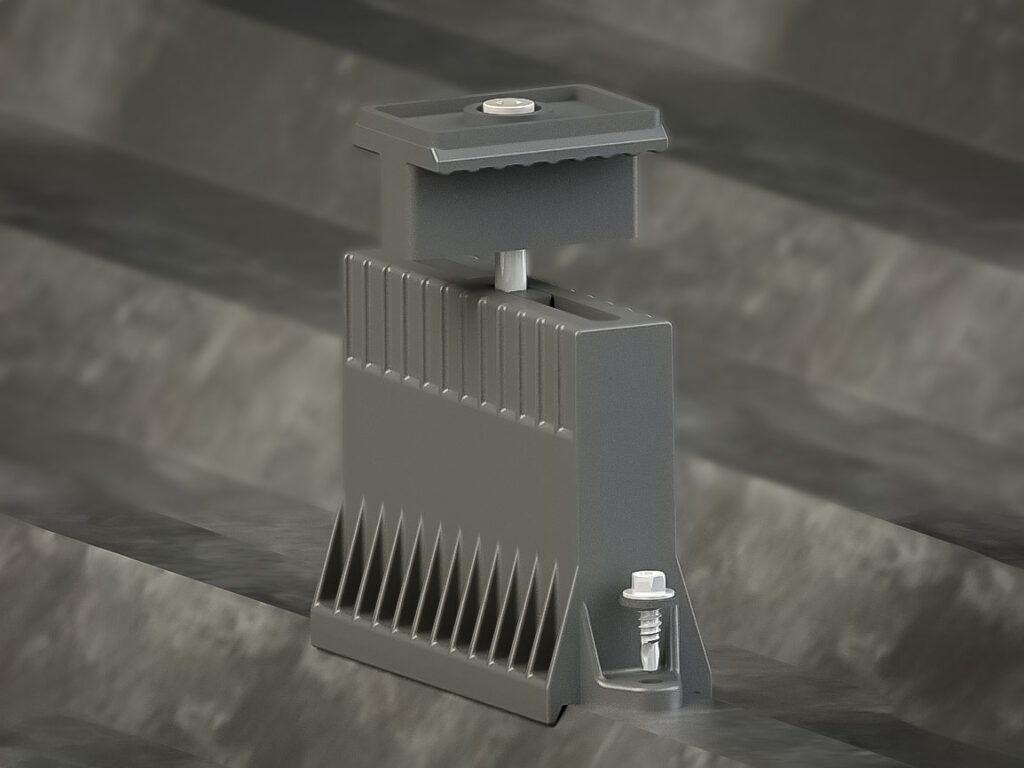

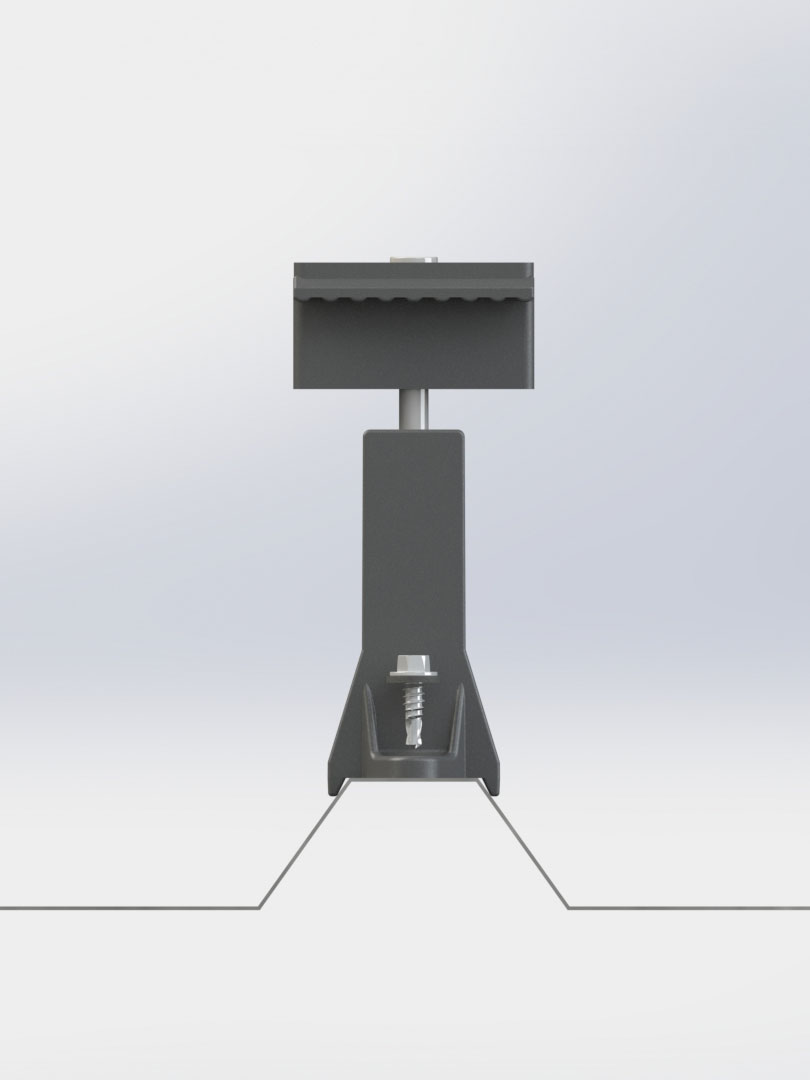

- Place the bracket on the IBR peak. The manual states it aligns with the roof profile.
- Secure it with a stitching screw and sealing washer on each side.

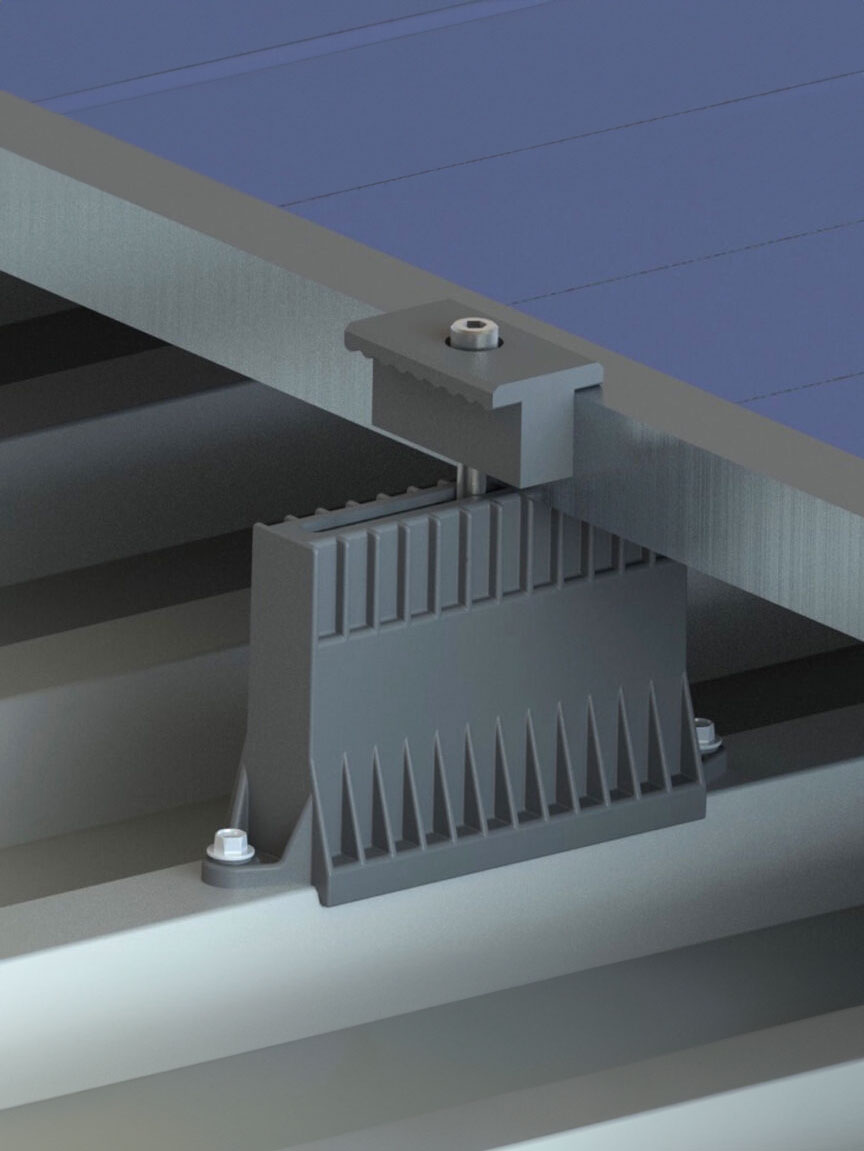

- Fit the earth plate, seat the framed module, choose the 30, 35 or 40 mm end spacer, and press the anti-tamper cap on once the top bracket is secure.
Who orders it
Roofing and solar installers, EPCs buying supply-only, and building owners who want the brackets installed. Product quotes are national. Installation is arranged from Pretoria.
Need installation?
Deo Solar’s only published office is 475 Derek’s Lane, Lynnwood, Pretoria 0081. Product supply is national. Full installation is run from that Pretoria head office. Johannesburg, Cape Town and Durban projects are served from Pretoria. Those cities are not branch offices.
Questions about this product
Which solar mounting bracket fits an IBR roof?
Deo Solar's IBR rail-less bracket is made for trapezoidal IBR metal sheet. It is a pre-assembled, UV-stabilised glass-reinforced composite bracket that sits on the IBR peak, self-aligns to the profile and is fixed with a stitching screw and sealing washer on each side. It carries framed PV modules in landscape orientation without a continuous aluminium rail. Deo Solar is a South African manufacturer and supplies the brackets nationally.
Do IBR solar brackets need mounting rails?
Not with a rail-less system. Deo Solar's IBR brackets attach each framed module directly to brackets fixed on the IBR sheet, so there is no continuous aluminium rail to buy, cut or carry onto the roof. End spacers (30, 35 or 40 mm to match the module frame), earth plates and anti-tamper caps are selected with the bracket order.
What roof pitch and sheet thickness suit Deo Solar IBR brackets?
The installation manual covers roof pitches from 5° to 45°, on aluminium sheet of at least 0.5 mm or steel sheet of at least 0.4 mm. The bracket gives about 100 mm clearance from the roof for ventilation. Check sheet condition before fixing; the installation manual governs the install.
What warranty do Deo Solar IBR brackets carry, and how do I order them?
Deo Solar IBR brackets carry a 10-year product warranty when installed according to the installation manual. Product quotes are available nationally: send the roof profile or photos, location, approximate panel count and whether you need supply only or supply and installation via the quote form, or call 012 110 4935. Installation is run from the Pretoria head office.
What clearance do IBR rail-less brackets provide?
Deo Solar IBR brackets are designed to provide approximately 100 mm clearance from the roof for ventilation, as stated on the product materials.
How is waterproofing handled on IBR installs?
Brackets use a self-sealing design with fixing hardware that includes sealing washers as specified in the installation manual. Roof sheet integrity must be checked before fixing.
Portrait or landscape?
The current IBR installation manual documents landscape orientation only.
